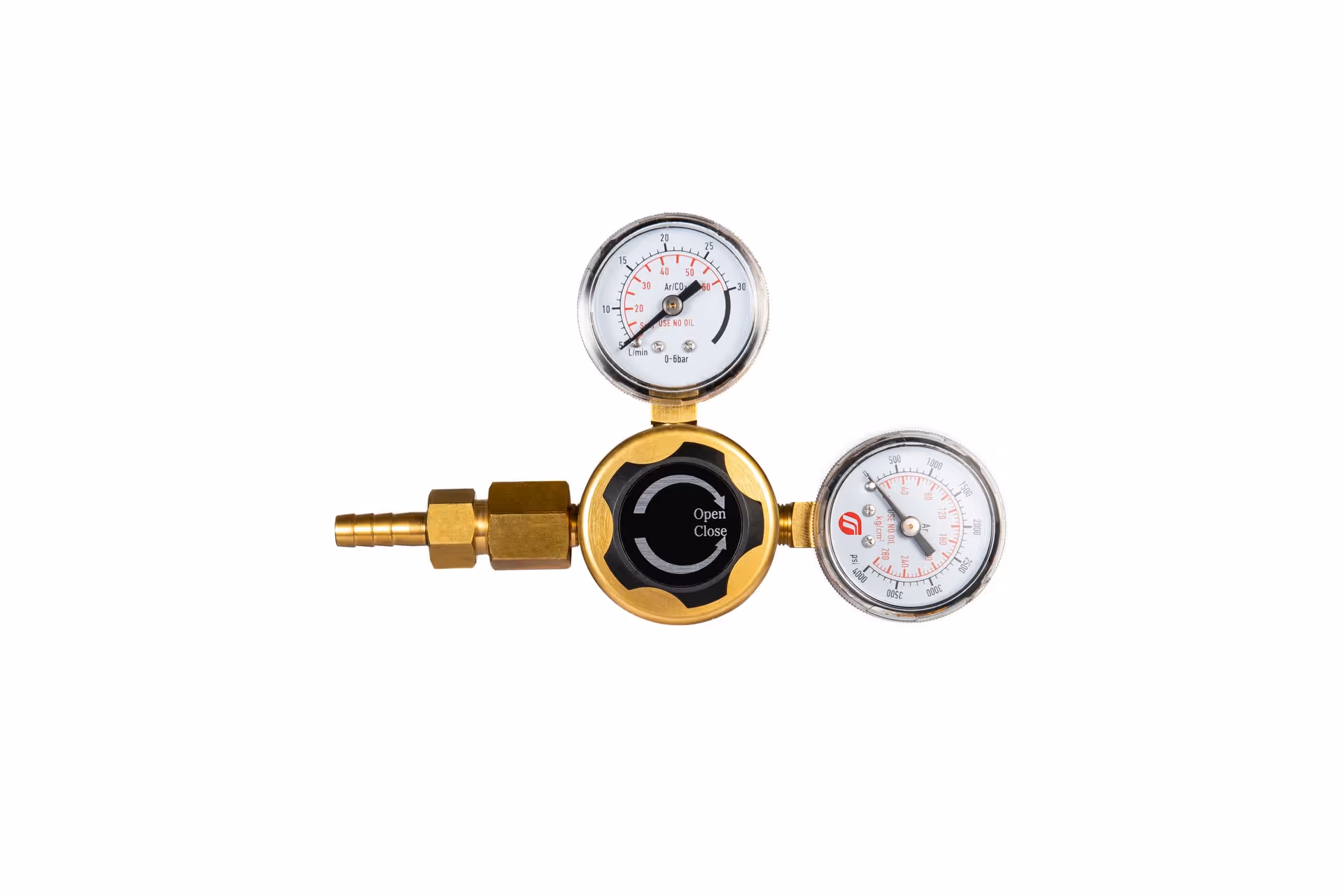

Product Model：GH-2
High-Quality Gas Pressure Regulator – CE Approved
Material & Compatibility
Available in premium brass, ensuring durability and high tensile strength.
Suitable for Argon and CO2 applications.
Features & Benefits
✔ Precision Control – Low Pressure Precision Regulator, Use dual Press Gauges to measure tank pressure and line pressure.
✔ Enhanced Safety – Integrated external relief valve for secure operation.
✔ High Filtration Efficiency – Sintered metal inlet filter effectively removes impurities.
✔ Superior Durability – Forged body construction, no welding joints, easy to maintain.
✔ Certified Performance – Complies with EN ISO 5171 & EN ISO 2503 standards.
✔ Comprehensive Testing – 100% leakage test, pressure gauge test, functional test, and visual inspection before delivery.
This regulator is specially designed for TIG & MIG welding, ensuring consistent performance and reliability in professional applications.
Basic Info
| Model No. | GH-2 | Valve Seat | Single-Seat |
| Material | Brass | Tradmark | BRIL/Your Logo |
| Structure | Diaphragm | Style | American |
| Gas | Nitrogen, CO2, Oxygen, N2o, Compressed Air | Connection | Thread |
| Fuel Gas | C2h2, C2h4, Hydrogen, LPG, Acetylene, Propane | Inlet Thread | W22-14, W23-14, G5/8, W21.8*14, M22*1.5 Rh/Lh/F/M |
| Inert Gas | Argon, Helium | Temperature | Oridinary Temperature |
| Diaphragm | Neoprene / Nitrile Rubber (NBR) / EPDM Rubber | Transport Package | Master Carton |
| Cga Inlet Thread | Cga 300, Cga 510, Cga 580, Cga 590, Cga 540, etc | Origin | China |
| Outlet Connection | 9/16′′-18, M16*1.5, Swagelok Connection Tube, etc. | Hs code | 8481100090 |
| Max Inlet Pressure | ≤147 Bar | Working Pressure | 0-3 Bar |
Remark：Pressure Range, color, thread size, dial design can be customized as your requests.
Product Data
| Model No. | Gas | Max Inlet Pressure (Bar) | Delivery Pressure (Bar) | Flow (L/Min) | Inlet Connection | Outlet Connection |
| GH-2 | Argon | ≤147 | 0-3 | 0-30 | CGA580 | 5/8-18 |
| GH-2 | CO2 | ≤118 | 0-3 | 0-30 | CGA320 | 5/8-18 |
