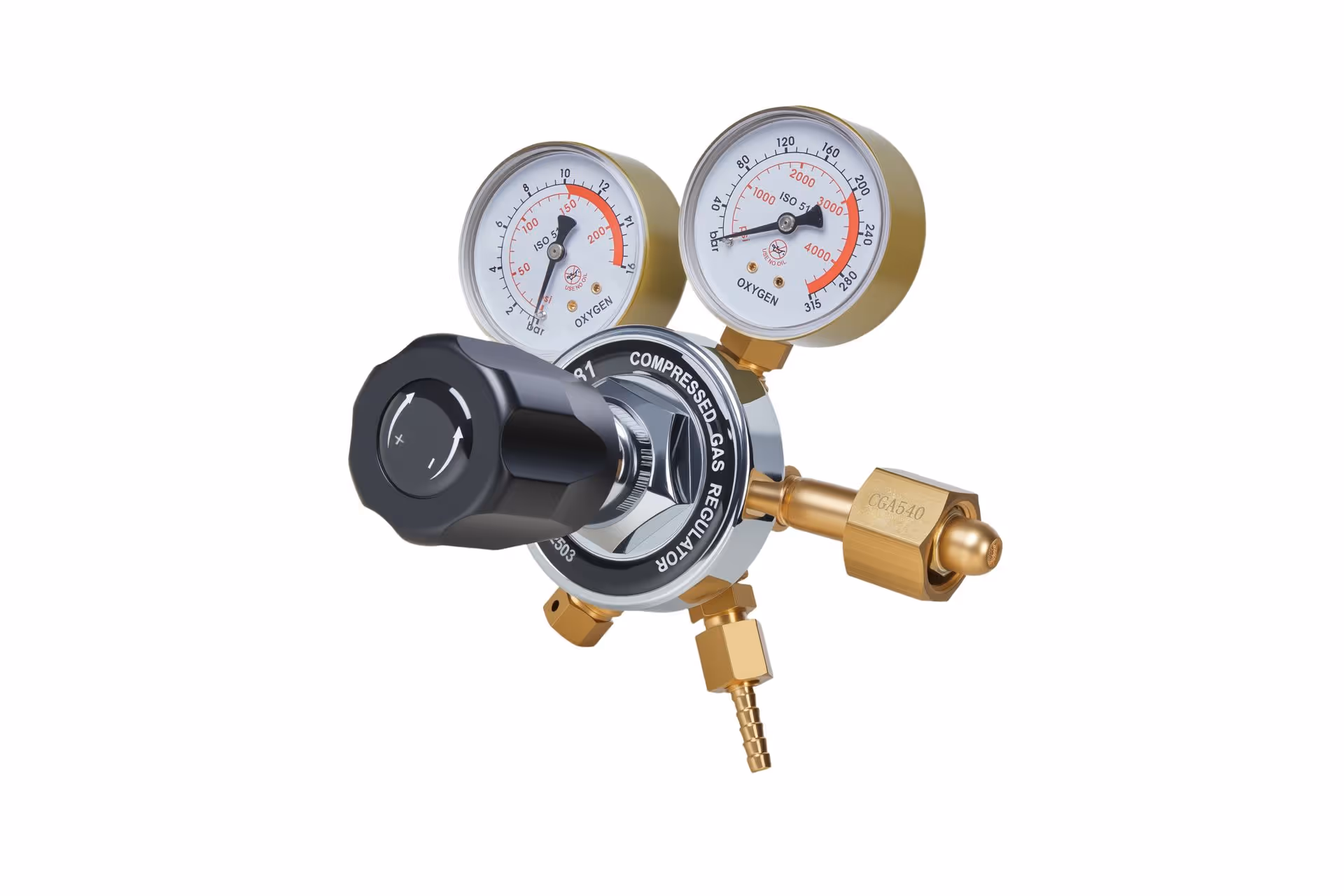

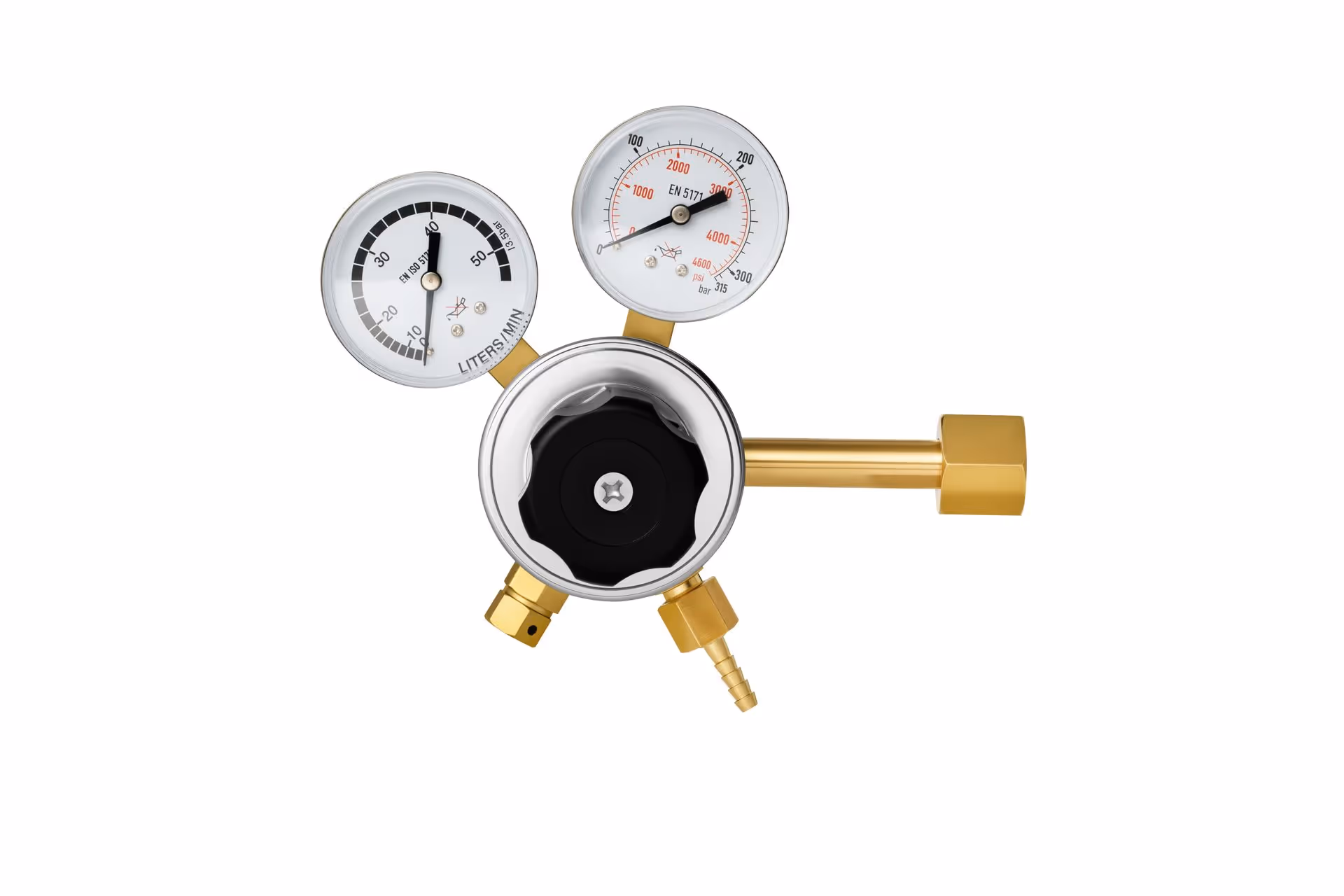

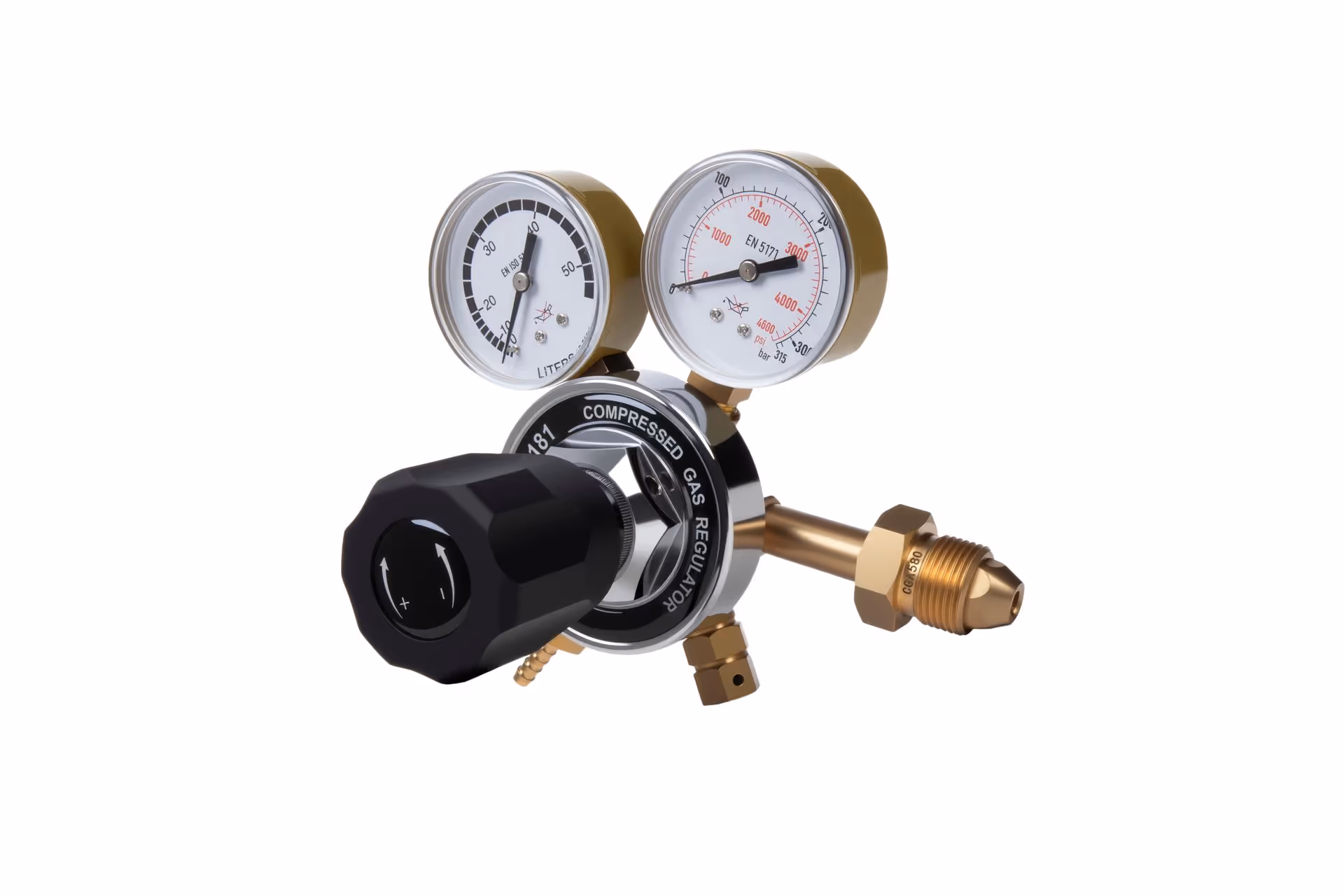

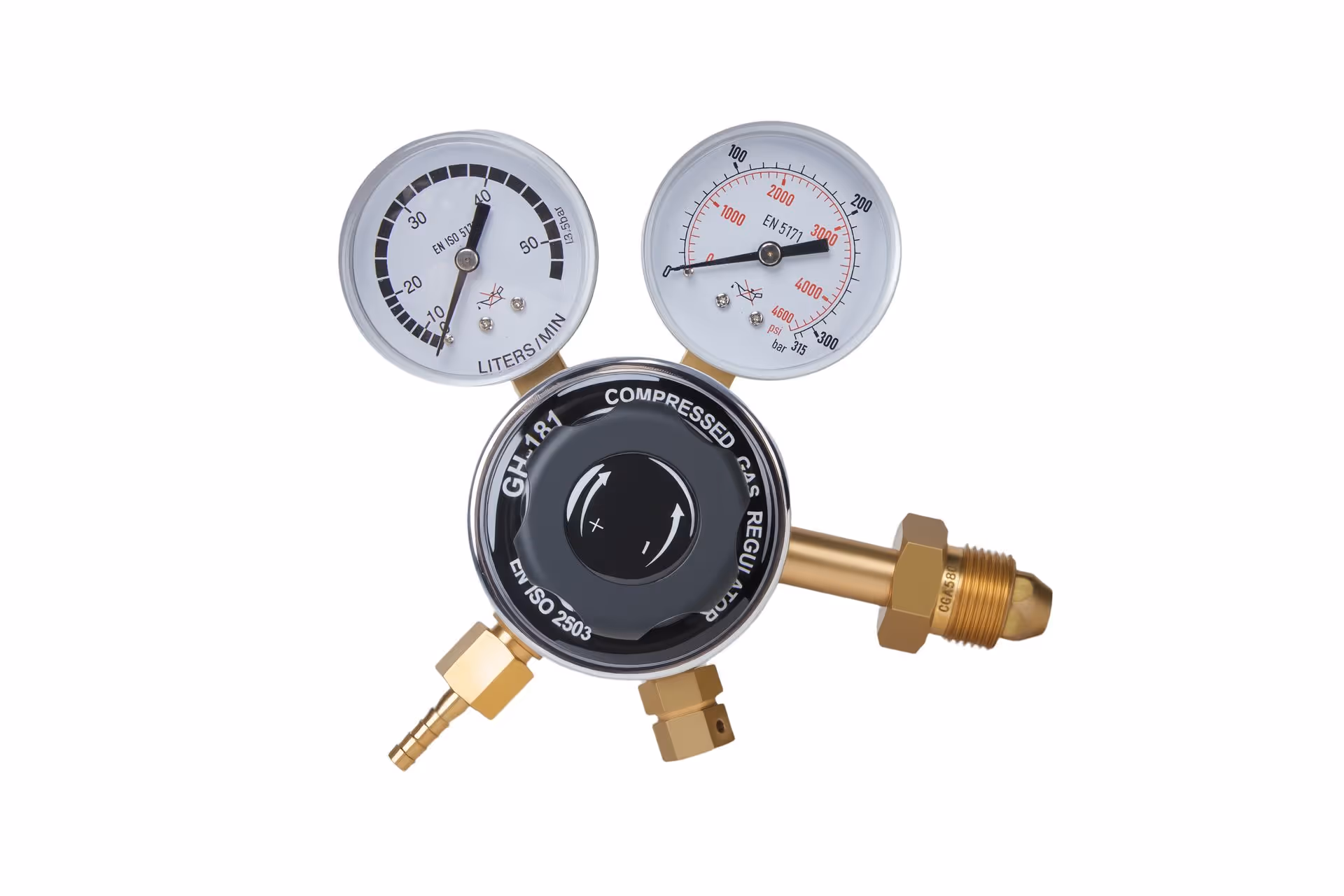

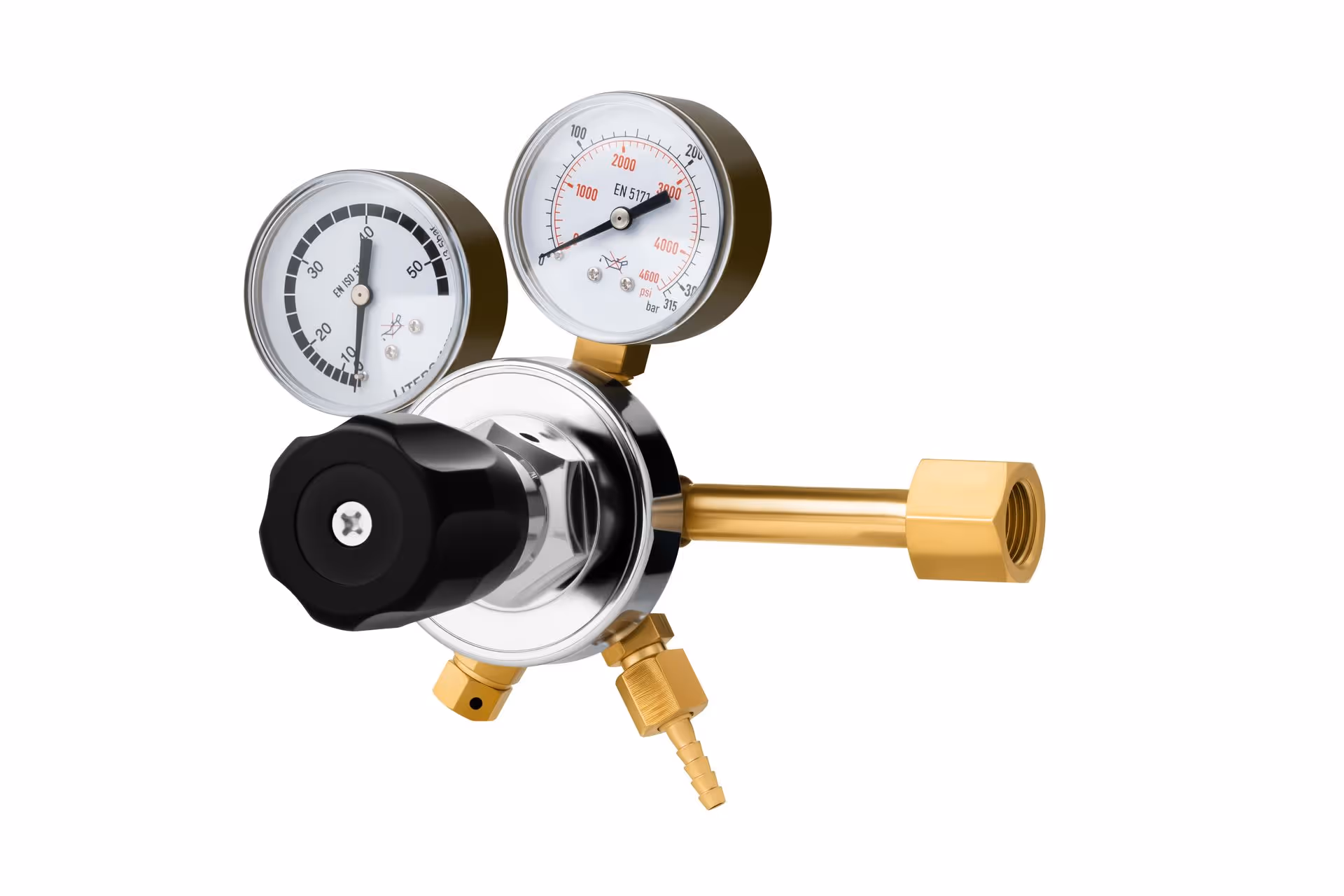

Product Model：GH-181
High-Quality Gas Pressure Regulator
Material & Compatibility
Available in premium brass, ensuring durability and high tensile strength.
Suitable for Argon, CO2, Oxygen, Acetylene, LPG, Air, Nitrogen, Helium applications.
Features & Benefits
✔ Precision Control – Use dual Press Gauges to measure tank pressure and line pressure.
✔ Enhanced Safety – Integrated external relief valve for secure operation.
✔ High Filtration Efficiency – Sintered metal inlet filter effectively removes impurities.
✔ Superior Durability – Forged body construction, no welding joints, easy to maintain.
✔ Certified Performance – Complies with EN ISO 5171 & EN ISO 2503 standards.
✔ Comprehensive Testing – 100% leakage test, pressure gauge test, functional test, and visual inspection before delivery.This regulator is specially designed for TIG & MIG welding, ensuring consistent performance and reliability in professional applications.
Basic Info
| Model No. | GH-181 | Temperature | Oridinary Temperature |
| Connection | Thread | Valve Seat | Single-Seat |
| Structure | Piston | Material | Brass |
| Inlet Connection | CGA540 | Outlet Connection | 9/16‘’-18 |
| Max Inlet Pressure | 230 Bar | Working Pressure | 2.5±0.5 Bar |
| Transport Package | Master Carton | Tradmark | BRIL |
| Origin | China | Hs code | 8481100090 |
Remark：The inlet and outlet threads can be customized according to your needs.
Product Data
| Model No. | Gas | Max Inlet Pressure (Bar) | Delivery Pressure (Bar) | Flow (SCFH) | Inlet Connection | Outlet Connection |
| GH-181 | OXYGEN | 230 | 10 | / | CGA540 | 9/16”-18 |
| GH-181 | AC | 25 | 1.4 | / | CGA510 | 9/16”-18LH |
| GH-181 | GLP | 25 | 3.5 | / | CGA510 | 9/16”-18LH |
| GH-181 | N2 | 230 | 10 | / | CGA580 | 9/16”-18 |
| GH-181 | ARGON | 230 | / | 50 | CGA580 | 9/16”-18 |
| GH-181 | CO2 | 230 | / | 50 | CGA320 | 9/16”-18 |
