Product Model：GH-195

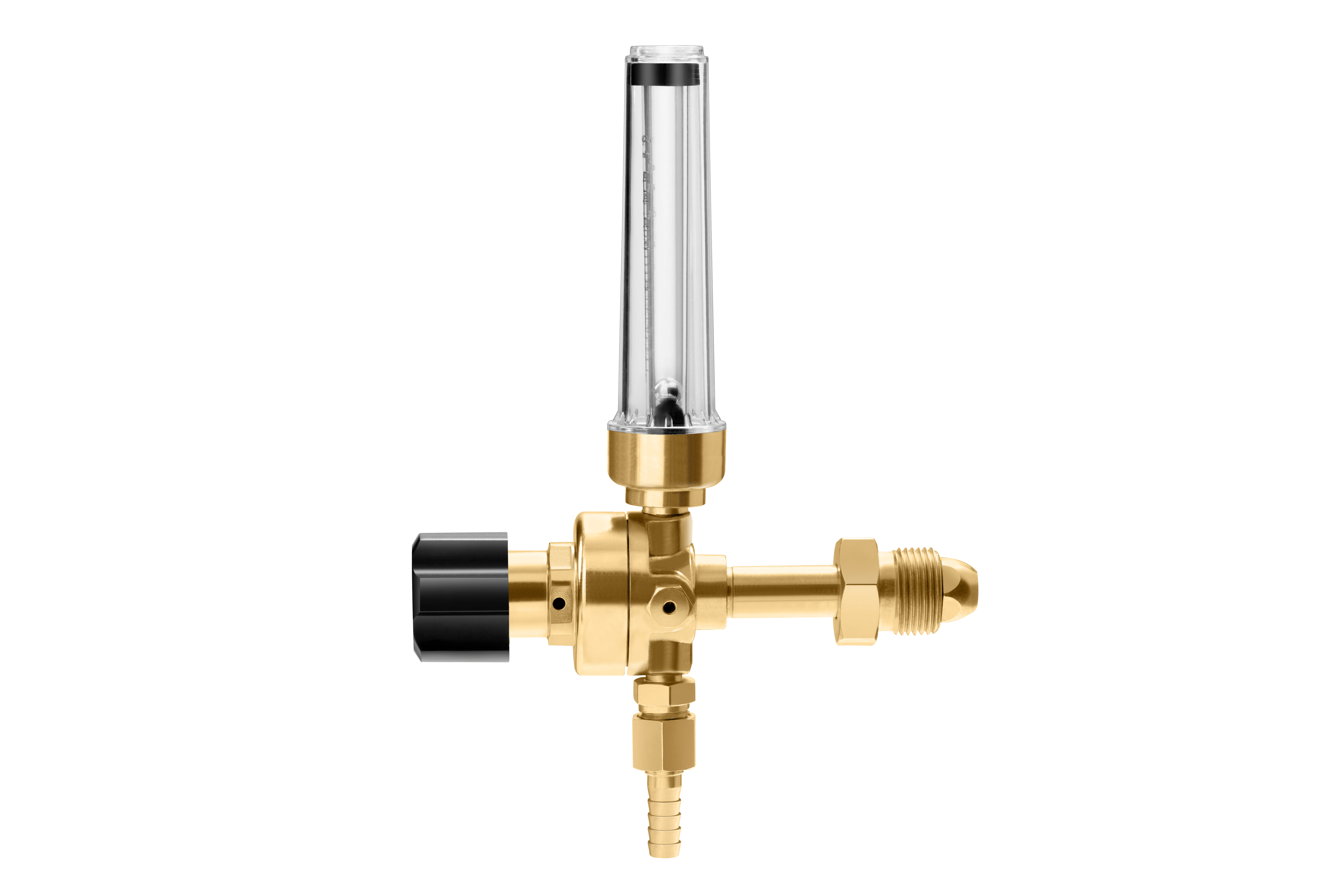

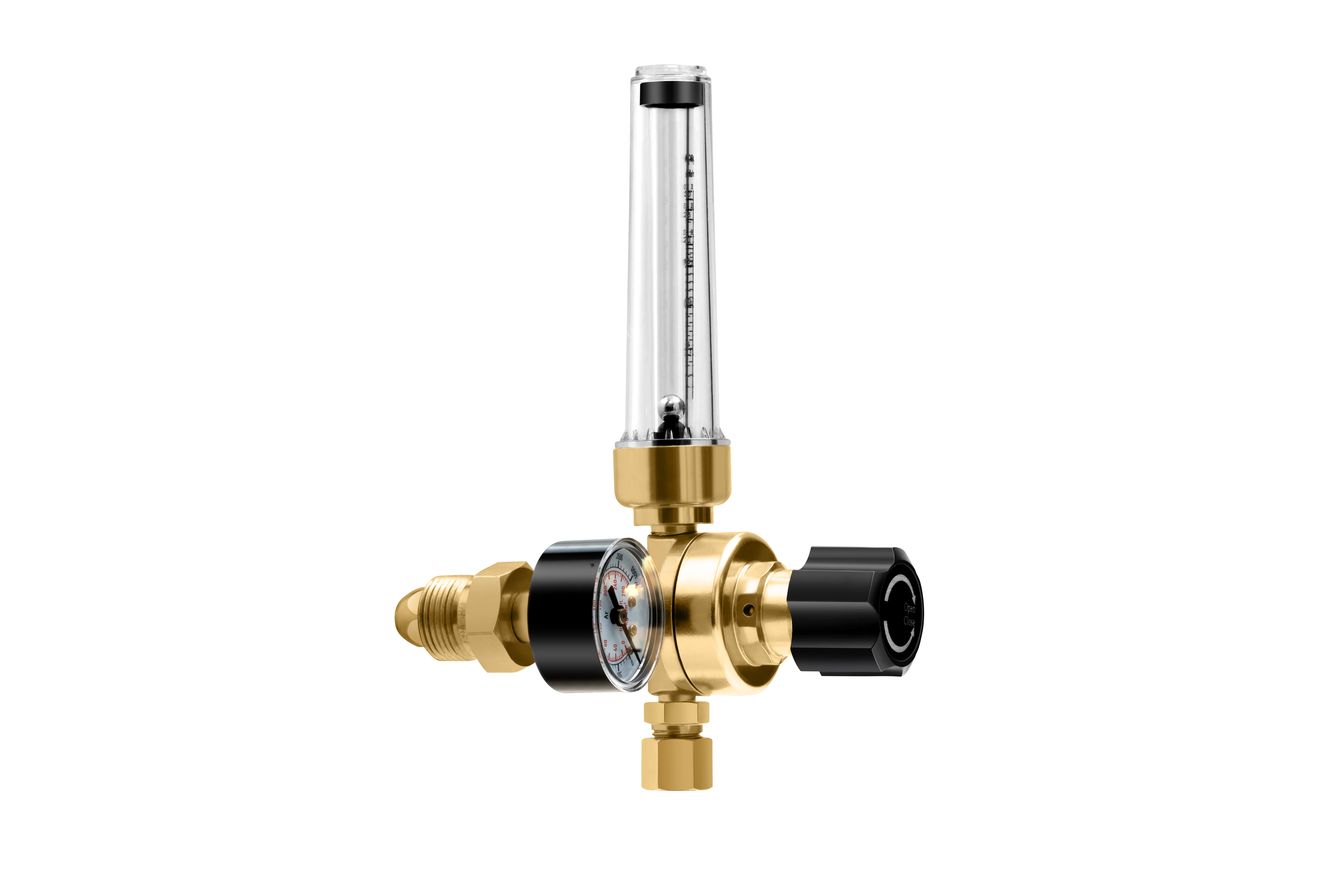

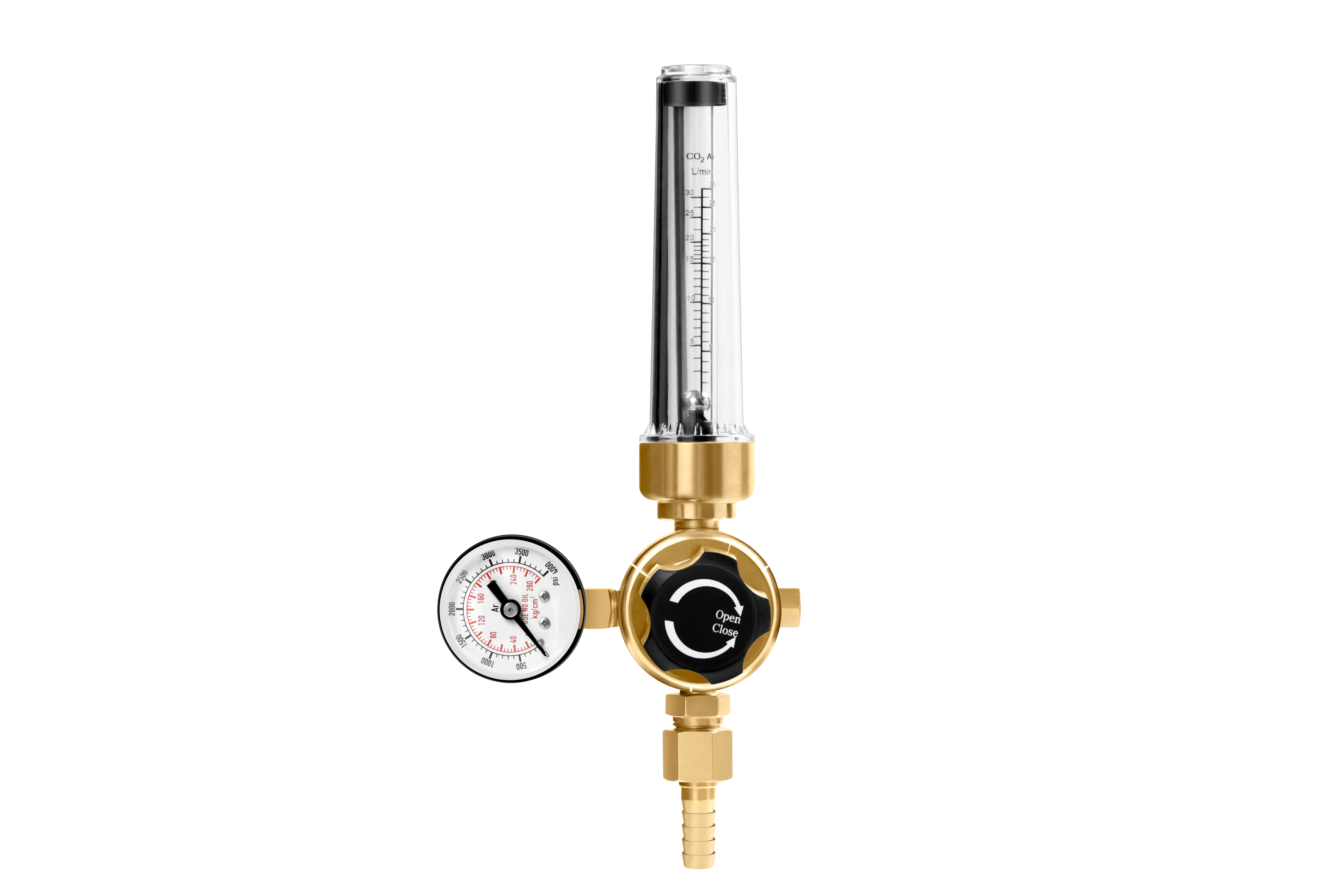

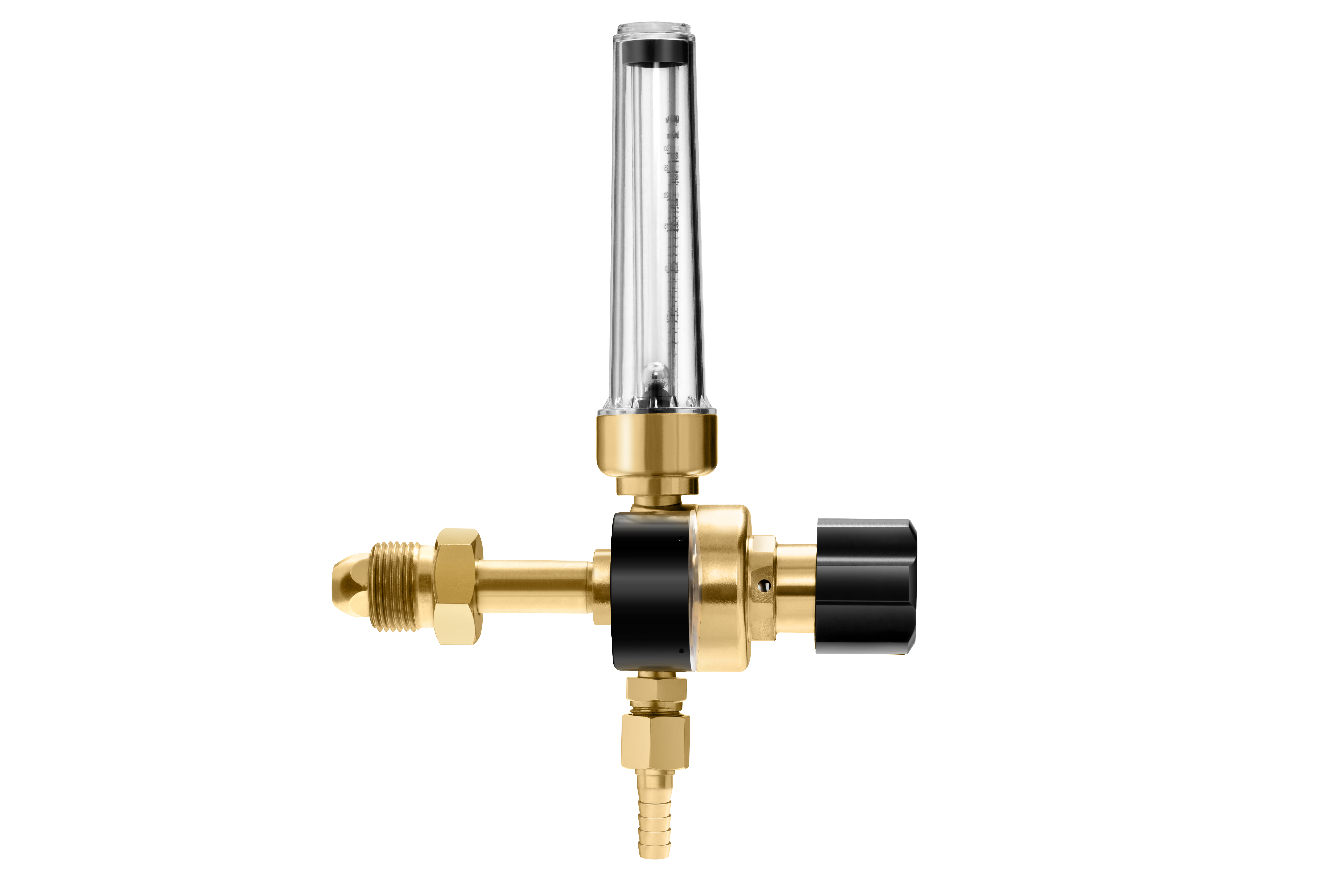

High-Quality Gas Flowmeter Regulator
Material & Compatibility
Available in premium brass, ensuring durability and high tensile strength.
Suitable for Argon and CO2 applications.
Features & Benefits
✔ Precision Control – Flowmeter provides accurate readings between 0-25L/min for precise gas regulation.
✔ Enhanced Safety – Integrated external relief valve for secure operation.
✔ High Filtration Efficiency – Sintered metal inlet filter effectively removes impurities.
✔ Superior Durability – Forged body construction, no welding joints, easy to maintain.
✔ Robust & Reliable – Shatter-proof PC flow tube for 360° visibility, impact resistance.
✔ Certified Performance – Complies with EN ISO 5171 & EN ISO 2503 standards.
✔ Comprehensive Testing – 100% leakage test, pressure gauge test, functional test, and visual inspection before delivery.This regulator is specially designed for TIG & MIG welding, ensuring consistent performance and reliability in professional applications.
Basic Info
| Model No. | GH-195 | Temperature | Oridinary Temperature |
| Connection | Thread | Valve Seat | Single-Seat |
| Structure | Piston | Material | Brass |
| Inlet Connection | CGA580 | Outlet Connection | 9/16”-18UNF |
| Max Inlet Pressure | ≤ 3000 PSI | Working Pressure | 1-30 L/min |
| Transport Package | Master Carton | Tradmark | BRIL |
| Origin | China | HS CODE | 8481100090 |
Remark：The inlet and outlet threads can be customized according to your needs.
Product Data
| Model No. | Gas | Max Inlet Pressure (Psi) | Outlet pipe diameter (MM) | Flow (L/Min) | Inlet Connection | Outlet Connection |
| GH-195 | Argon | ≤ 3000 Psi | 8 | 1-30 | CGA580 | 9/16”-18UNF |
| GH-195 | CO2 | ≤2000 Psi | 8 | 1-30 | CGA320 | 9/16”-18UNF |
